Projection Systems

For all CCE lecture halls, please set PowerPoint and other presentation software to 4:3 page layout.



151 Crellin

For best results, please set your screen resolution to either 1280 x 1024 or 800 x 600.

  • Flip open the touch screen and touch the Caltech logo.
  • Connect your computer. The proper connection name will appear on this screen:
    Crellin Projector Screen 1


  • Select the source on the next screen.  If you decide to change the input source, touch the "Home" screen.
    Crellin Projector Screen 2


  • The projector warmup screen will start the countdown.
  • The sound system will start with low or muted volume. Touch the "mute" symbol, then slide the volume up to raise it, if desired.
  • Please shut down the projector when finished, by pressing the Shutdown button.  The projector will shut down and go to cool mode while the screen retarcts.
    Crellin Projector Screen 3

If you have any questions, please call Jeff Groseth at Ext. 6620 or email him at jgroseth@caltech.edu.



101 Schlinger

For best results, please set your screen resolution to either 1280 x 1024 or 800 x 600.



147 Noyes and 153 Noyes

For best results, please set your screen resolution to either 1920 x 1080 or 1280 x 720.

  • Flip open the touch screen and touch the Caltech logo.
  • Connect your computer. The proper connection name will appear on the screen.
  • Select the source.  If you decide to change the input source, touch the "Home" screen. (The connections are on the left of the panel. DVD player is in the cabinet below, which requires a key.)
    Noyes Projector Screen 1


  • The bottom strip includes the shutdown button, in addition to lighting choices for the room.
  • The sound system will start with low or muted volume. Touch the "mute" symbol, then slide the volume up to raise it, if desired.
  • Touch the "Choose Screen" button to continue.  (For DVD player, please see picture of DVD screen below.)
    Noyes Projector Screen 2


  • Next, please select "Center Screen" or "Side Screen."
    Noyes Projector Screen 4


  • The screen behnind you will lower and the projector warmup screen will start the countdown.
    Noyes Projector Screen 5

  • The button of the screen you choose will turn blue and will show the input source (e.g. HDMI 1).
    Noyes Projector Screen 6


  • If you decide to change the input source, touch the "Home" screen.
  • Please shut down the projector when finished, by pressing the Shutdown button.  The projector will shut down and go to cool mode while the screen retarcts. (If you dimmed the lights, they will automatically return to "All On.")

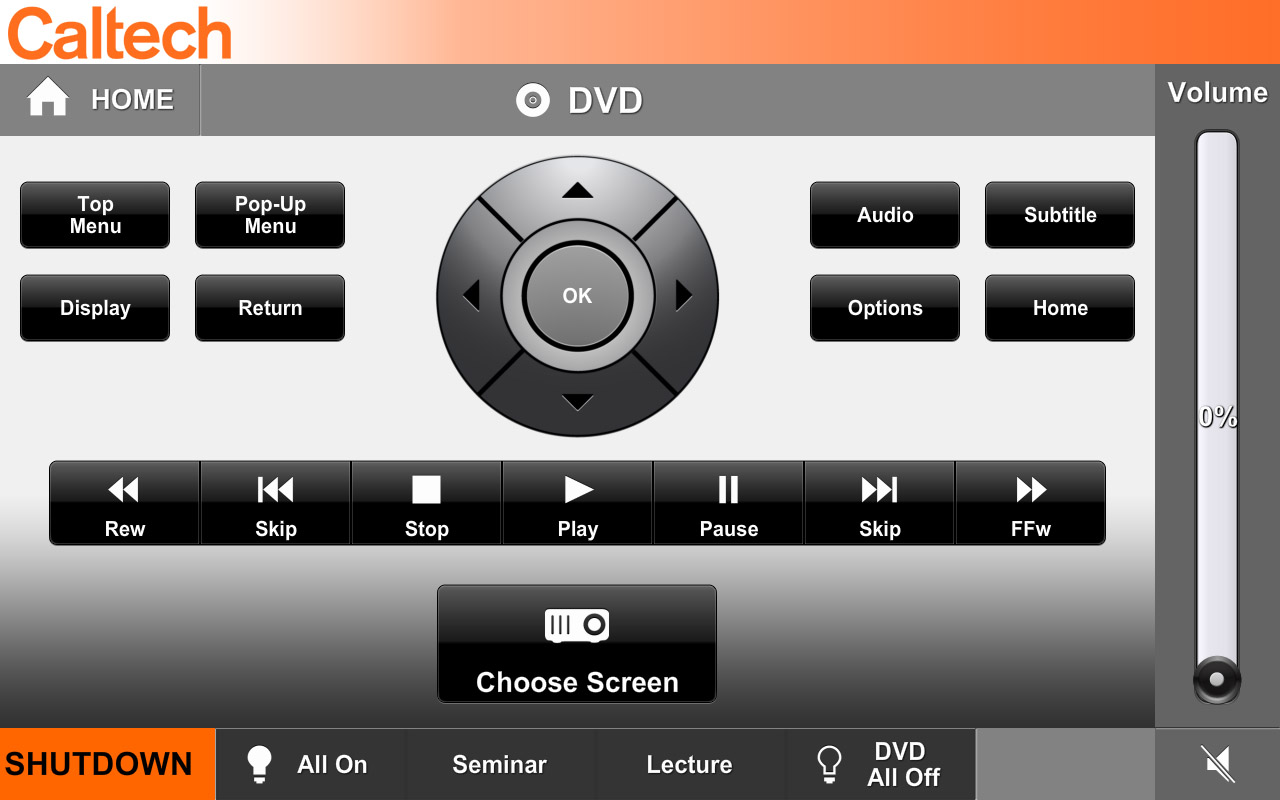

DVD Player: If you selected VGA 2 / DVD, then DVD, you will see the screen with the DVD controls.  Please shut down the system after viewing your DVD.
Noyes Projector Screen 7


Document Viewer / Overhead Projecotr: please see instructions (PDF, 6.5 MB).

If you have any questions, please call Jeff Groseth at Ext. 6620 or email him at jgroseth@caltech.edu.
